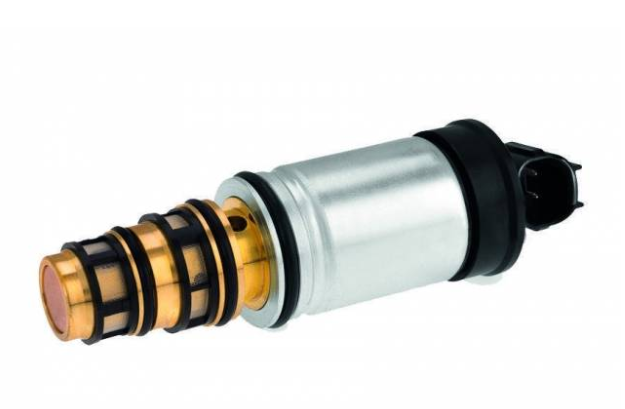

Compressor Control Valves: Types, Functions, and Applications

Let’s Break It Down: Compressor Types, How They Work, and Their Real-World Uses.

Technical Specifications for Selecting Compressor Pressure Control Valves

Selecting the right compressor pressure control valve requires evaluating its flow capacity, pressure rating, material compatibility, and operating conditions. These technical specifications help ensure accurate flow regulation, reliable compressor performance, and safe operation across industrial applications.

1. Compressor Valve Sizing

Correct valve sizing is essential for maintaining the required gas flow without creating excessive pressure drops or unstable compressor operation. Valve sizing depends on the compressor's capacity, inlet and outlet pressures, operating temperature, gas density, and required flow rate.

Engineers should consider the following parameters when determining the appropriate valve size:

• Flow Rate: The required gas or air flow, typically measured in CFM, Nm³/hr, or m³/hr.

• Inlet and Outlet Pressure: The pressure conditions before and after the valve.

• Operating Temperature: The temperature of the gas passing through the valve.

• Valve Opening Range: The required control range under minimum and maximum operating loads.

• Connection Size: The valve connection must match the compressor piping and system requirements.

Proper valve sizing helps prevent excessive pressure loss, inadequate flow capacity, and inefficient compressor operation.

2. Understanding the Flow Coefficient (Cv)

The flow coefficient (Cv) indicates a valve's capacity to allow fluid flow through it at a specified pressure differential. In its standard definition, Cv represents the flow of water in US gallons per minute through a valve with a 1 psi pressure drop.

For compressor control valves handling gases, engineers must use appropriate gas-sizing equations that account for gas pressure, temperature, specific gravity, compressibility, and flow characteristics.

The required Cv depends on:

• Required gas flow rate.

• Upstream and downstream pressure.

• Operating temperature.

• Gas molecular weight and specific gravity.

• Valve characteristics and operating range.

Selecting an appropriate Cv helps achieve accurate flow control and prevents valve oversizing or undersizing.

3. Pressure Rating and Operating Conditions

The pressure rating of a compressor pressure control valve determines the pressure conditions under which it can safely operate. Valve selection should account for maximum operating pressure, design pressure, temperature, pressure fluctuations, and applicable piping or equipment standards.

Common industrial compressor applications include:

• Low-pressure applications: HVAC, refrigeration, and general-purpose air compression.

• Medium-pressure applications: Industrial air compressors and process gas systems.

• High-pressure applications: Oil and gas processing, petrochemical facilities, and high-pressure gas compression.

The valve's pressure class and allowable working pressure must be verified against its manufacturer specifications and applicable standards. Pressure ratings should not be assumed from nominal operating ranges alone.

4. Material Selection for Compressor Pressure Control Valves

Material compatibility is important for ensuring valve durability, corrosion resistance, and reliable sealing under different operating conditions. The selection depends on the process gas, operating temperature, pressure, and potential exposure to corrosive or abrasive substances.

Common material considerations include:

• Carbon Steel: Used in many industrial applications where strength and pressure resistance are required.

• Stainless Steel: Suitable for applications requiring improved corrosion resistance.

• Alloy Steel: Considered for demanding pressure and temperature conditions.

• Special Alloys: Selected for specific corrosive or high-temperature process environments.

• Sealing Materials: PTFE, elastomers, and other compatible sealing materials may be selected according to gas composition, temperature, and pressure requirements.

Material selection should always be verified against the actual process media and operating environment.

5. Actuation and Control Requirements

The actuator determines how a compressor valve responds to control signals and changing operating conditions. The appropriate actuation method depends on the required response time, control accuracy, automation system, and operating environment.

• Pneumatic Actuators: Commonly used in industrial systems requiring reliable and responsive valve operation.

• Electric Actuators: Suitable for automated applications requiring precise positioning and integration with control systems.

• Manual Operation: Used in applications where frequent automatic adjustment is not necessary.

The actuator should be compatible with the valve design and the compressor's control strategy.

How to Ensure Reliable Compressor Valve Performance

Before selecting a compressor valve, verify its flow capacity, Cv, pressure rating, material compatibility, connection dimensions, actuator requirements, and operating conditions against the compressor manufacturer's specifications.

Proper engineering evaluation helps improve flow regulation, minimize operational problems, reduce maintenance requirements, and support reliable compressor performance.

Types of Compressor Control Valves

Each compressor control valve serves a unique function depending on system design, flow conditions, and pressure requirements. Below are the most common types used across industries:

1. Inlet (Suction) Control Valve
•    Controls the volume of gas or air entering the compressor.
•    Helps in modulating compressor capacity during variable load conditions.
•    Use case: Ideal for systems that experience frequent load fluctuations and require precise capacity control.

2. Throttle Valve
•    Restricts the inlet pressure to reduce the compressor load.
•    Typically used in systems where energy efficiency is critical.
•    Use case: Helps prevent over-compression in oil & gas or chemical plants.

3. Blow-Off Valve (Bypass Valve)
•    Releases compressed air back to the suction side or atmosphere.
•    Prevents pressure buildup when demand suddenly drops.
•    Use case: Protects system during startup or shutdown phases.

4. Unloading Valve
•    Temporarily disengages compression during no-load conditions or startup.
•    Reduces mechanical stress on the motor and compressor.
•    Use case: Improves system longevity in HVAC or refrigeration systems.

5. Relief Valve (Safety Valve)
•    Opens when pressure exceeds a set threshold to prevent equipment damage.
•    Vital for system safety and compliance with industry standards.
•    Use case: Used as a fail-safe in all high-pressure compressor systems.

Applications of Compressor Pressure Control Valves

Here’s where each compressor pressure control valve plays a critical role:
•    Inlet Suction Valve: In commercial HVAC systems to match compressor output with fluctuating cooling loads.
•    Blow-Off Valve: During compressor startup to prevent dangerous surges and allow gradual pressure build-up.
•    Throttle Gas Valve: In refineries where fine pressure control helps manage high-pressure hydrocarbon gases.
•    Unloading Valve: In air compressors used for pneumatic tools where frequent cycling requires soft starts.
•    Pressure Relief Valve: In industrial compressors handling combustible gases for overpressure protection.

Performance Considerations

When selecting the appropriate compressor control valve, it’s essential to evaluate:
1. Material Compatibility
•    Ensure valve components resist corrosion and erosion from the gas media (e.g., oxygen, nitrogen, hydrocarbons).

2. Sizing Based on Flow & Pressure
•    Valve must match the compressor’s flow rate (CFM/Nm³/hr) and working pressure (psi/bar).
•    Oversizing or undersizing can lead to pressure drops or system inefficiencies.

3. Actuation Method & Response Time
•    Pneumatic actuators offer quick response in industrial setups.
•    Electric actuators provide better control and integration with automation systems.
•    Choose based on required response time and control complexity.

How to Choose the Right Compressor Pressure Control Valve?

Choosing the right compressor presssure control valve depends on the compressor type, operating pressure and temperature, required flow capacity, gas or fluid characteristics, control requirements, and system compatibility. Key considerations include valve size and pressure rating, flow coefficient (Cv), material compatibility, response and control accuracy, leakage requirements, actuator type, and operating environment. The valve should also be selected based on the compressor’s specific application, control strategy, safety requirements, and maintenance needs to ensure reliable operation, efficient performance, and long service life. Here are the main factors to consider:

1. Based on Application
•    HVAC Systems → Require valves with precise modulation for fluctuating loads.
•    Refineries & Petrochemical Plants → High-pressure, corrosion-resistant valves to handle hydrocarbons and gases.
•    Chemical Processing → Valves resistant to chemical attack, often stainless steel or alloy-based.
•    Pneumatic Tools & Small Compressors → Unloading and blow-off valves for frequent cycling.

2. Based on Pressure Range
•    Low-Pressure (1–15 bar) → Common in HVAC and refrigeration systems.
•    Medium-Pressure (15–50 bar) → Used in industrial air and gas compressors.
•    High-Pressure (50–100+ bar) → Required in refining, chemical, and energy sectors.

3. Based on Actuation Method
•    Manual Valves → Low-cost, simple systems where automation isn’t needed.
•    Pneumatic Valves → Fast response, widely used in industrial compressors.
•    Electric Valves → High precision, ideal for integration with control systems.
•    Digital/Smart Valves → Enable advanced capacity control through IoT and automation.

4. Based on Media Compatibility
•    Air & Nitrogen → General-purpose valves with minimal corrosion issues.
•    Steam → High-temperature compatible materials.
•    Hydrocarbons & Combustible Gases → Valves designed to meet API and safety standards.
•    Refrigerants (R134a, Ammonia, CO₂) → Special sealing materials to handle low temperatures and chemical reactivity.

Signs Your Compressor Valve Needs Replacement

A faulty control valve can reduce efficiency and put your system at risk. Look out for these signs:
•    Frequent Pressure Fluctuations → Inconsistent airflow or unstable system operation.
•    Unusual Noise or Vibrations → Worn valves can cause rattling or hissing sounds.
•    Increased Energy Consumption → Compressor running longer due to poor control.
•    Overheating → Inefficient valves causing excessive load on the system.
•    Visible Wear or Leakage → Cracks, corrosion, or leaks around the valve body.

Future Trends: Digital & IoT-Based Compressor Valves

The next generation of compressor control valves is shifting towards smart automation:
•    Digital Scroll & Modulating Valves → Offer pulse-width modulation for ultra-precise load control.
•    IoT-Enabled Valves → Real-time monitoring of pressure, temperature, and flow through cloud platforms.
•    Predictive Maintenance → Sensors detect wear patterns before failure occurs.
•    Energy Optimization → Smart valves can reduce energy consumption by 15–25% in large compressor networks.
Companies investing in digital compressor control solutions can expect longer equipment life, reduced downtime, and lower operational costs.

Frequently Asked Questions (FAQs)

1. What factors should be considered when selecting a compressor control valve?

Selecting a compressor control valve requires evaluating the compressor type, operating pressure, temperature, flow rate, gas composition, and required capacity control. Engineers should also consider the valve's flow coefficient (Cv), pressure rating, material compatibility, leakage requirements, and actuator type. Proper valve selection helps maintain stable compressor performance, improve energy efficiency, and reduce unplanned maintenance.

2. What is the difference between a suction control valve, a blow-off valve, and an unloading valve?

A suction control valve regulates the amount of gas entering a compressor to adjust its capacity. A blow-off valve releases or recirculates excess compressed gas to prevent unstable operation during sudden load changes. An unloading valve reduces or disables compression during startup or low-demand conditions. Each valve performs a different function depending on the compressor design and operating requirements.

3. Which compressor flow control valves are suitable for high-pressure industrial gas applications?

High-pressure industrial gas compressors may require capacity control valves, suction control valves, unloading valves, and pressure relief valves, depending on the system design. Selection should consider maximum operating pressure, temperature, gas compatibility, sealing materials, pressure rating, and applicable safety standards. These valves are commonly used in oil and gas processing, petrochemical facilities, and chemical manufacturing plants.

4. What are the common signs of a faulty compressor pressure control valve?

Common signs of a faulty compressor pressure control valve include fluctuating discharge pressure, reduced airflow or gas capacity, unusual operating noise, increased energy consumption, overheating, and gas leakage. A malfunctioning suction or capacity control valve can cause inefficient compressor operation, while a faulty unloading valve may create startup problems. Inspecting valve seats, seals, actuators, and control mechanisms helps identify potential failures.

5. Which industries use compressor pressure control valves, and what are their main applications?

Compressor pressure control valves are widely used in oil and gas, petrochemical, chemical processing, manufacturing, HVAC, refrigeration, and industrial air compression systems. They regulate gas intake, adjust compressor capacity, manage operating pressure, support unloading operations, and protect equipment against overpressure. The required valve type depends on the compressor technology, operating pressure, process gas, temperature, and application requirements.

Final Thoughts
