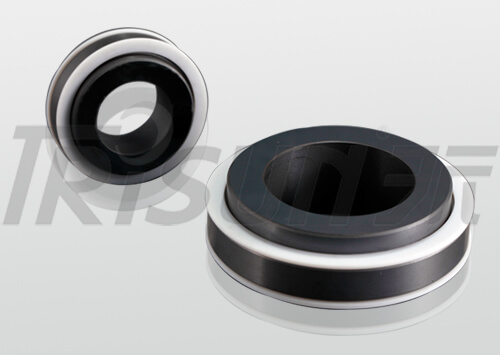

TS10T TS10R(John Crane type 10R 10T)
description1
Features
TS 10T TS 10R
Our Mechanical seal model TS10T TS10R can replace John Crane 10R 10T.
10T is integral rotary face ,10R is insert rotary face
Our Mechanical seal model TS10T TS10R can replace John Crane 10R 10T.
10T is integral rotary face ,10R is insert rotary face
| Operating Limits Pressure: ≤ 1.3MPa Speed: ≤ 15m/s Temperature: -35℃ ~+120℃ ● Rotary Ring (Filled PTFE/SiC) ● Stationary Ring (99%Ceramic/SiC) ● Spring & Other Parts(SUS304/SUS316 /Titanium/Hastelloy-C)
|
 |

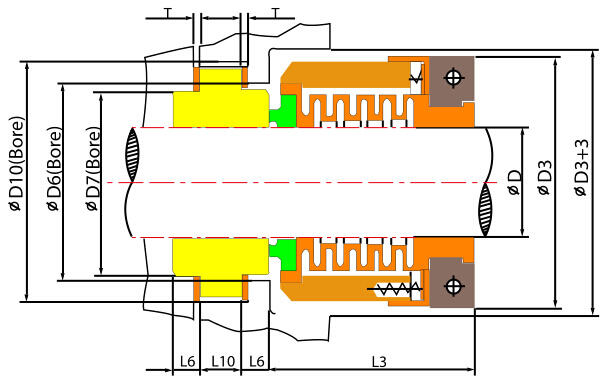

| D(mm) | D(in) | D3 | D6 | D7 | D10 | L3 | L6 | L10 | T |
|
16
18
20
twenty two
twenty four
25
28
30
32
33
35
38
40
43
45
48
50
53
55
58
60
63
65
68
70
75
80
85
90
95
100
|
0.750
0.875
1.000
1.125
1.250
1.375
1.500
1.625
1.750
1.875
2.000
2.125
2.250
2.375
2.500
2.625
2.750
2.875
3.000
3.250
3.500
3.750
4.000
|
54
54
57
57
61
61
67
70
70
73
73
76
80
83
83
86
89
89
103
107
110
110
113
116
118
118
122
126
150
156
163
163
169
|
37.5
37.5
40.5
40.5
43.5
43.5
51.5
55
55
58
58
64.5
67.5
71
71
74
80
80
83.5
86.5
89.5
89.5
93
96
99
99
102.5
104
115
121.5
128
128
137.5
|
36.51
36.51
39.69
39.69
42.86
42.86
50.8
53.98
53.98
57.15
57.15
63.5
66.68
69.85
69.85
73.03
79.38
79.38
82.55
85.73
88.9
88.9
92.08
95.25
98.43
98.43
101.6
103.17
114.3
120.65
127
127
136.53
|
48
48
51
51
54
54
61
68
68
71
71
77
80
83
83
90
96
96
99
102
106
106
109
112
115
115
118
120
131
137
144
144
153
|
31
31
31
31
33
33
36
37
37
38
38
38
40
40
40
43
43
43
53
53
53
53
53
53
53
53
53
53
73
73
73
73
73
|
4.8
4.8
4.8
4.8
4.8
4.8
5.5
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
|
8
8
8
8
8
8
9.5
9.5
9.5
9.5
9.5
9.5
9.5
9.5
9.5
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
|
0.8
0.8
0.8
0.8
0.8
0.8
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
|
